- Bandwidth: DC to 250MHz (-3dB)
- Attenuation Ratio: 100:1
- Input resistance: 50MΩ
- Input capacitance: 7.5pF
- Compensation Range: 10pF to 50pF
- Rise Time: <1.4ns
- Max. input voltage: 1000Vrms, 6,000Vpeak
- Probe Length (coax): 3.0 meter
- Standard accessories include: ground leads, solid tip, spring tip, ins. cap, pincher tip, tool, safety alligator clip, color-coding rings
Sonde di Tensione
Richiedi Informazioni

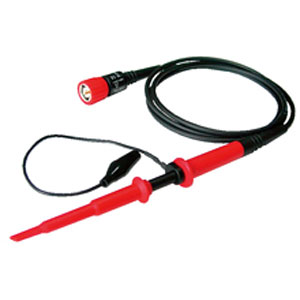

Yokogawa 701945 Sonda Passiva ad Alta Tensione, 1000Vrms / 250 MHz
Passive Probe, 1000Vrms, 250MHz, 100:1, 50MΩ, 3.0m, ‘Mini’ with extra-long 3m lead. Compatible with DL1700, DLM2000, DLM4000, DL/DLM6000, DL9000 and SB5000. See also 701944 for 400 MHz version of this same probe.
