Yokogawa 702902 Sonda Passiva 1000V / 60 MHz

Yokogawa 702902 Sonda Passiva 1000V / 60 MHz

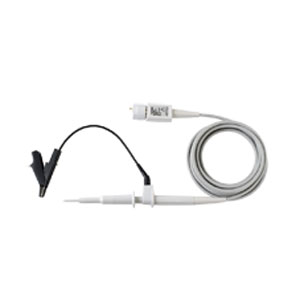

Sonda passiva, 1000 V (picco DC + AC) CAT II, ​​60 MHz, 10: 1, 10 MΩ, 2,5 m, ‘Sonda isolata’ ‘Iso-Probe’.

Da utilizzare SOLO con moduli di ingresso isolati 701250, 701251, 701267, 701280, 701281, 720210.

Da non usare per misurazioni CAT III o CAT IV.

Yokogawa 702902 Sonda Passiva 1000V / 60 MHz
Yokogawa 702902 Sonda Passiva English Datasheet
Categoria: Tag: ,
Richiedi Informazioni
  • Operating environment −40 to +85°C (no condensation)
  • Bandwidth: DC to 200MHz (-3dB)
  • Attenuation ratio: 10:1 ±2% (+5 to +40 °C), 10:1 ±3% (−40 to +5 °C, +40 to +85 °C)
  • Connector Type: BNC
  • Input Resistance: 10MΩ ±2% (typical)
  • Input Capacitance: 16pF (typical)
  • Matching input capacitance: 15 to 25 pF
  • Rise Time: 1.8 ns max. (typical)
  • Propagation delay: 11.2 ns (typical)
  • Maximum input voltage, Space Between the pincher tip and safety ground lead:
    • +/-1,000V (DC + ACpeak) CAT II
  • Probe length: 2.5m
  • Standard parts included: One each, B8099NJ Pincher tip(high-side), B8099NK Safety ground lead (low-side)
  • Safety Rating (Probe Alone): EN61010-031, Measurement category I, II 1000 V (DC + ACpeak).

[:en]

  • Operating environment −40 to +85°C (no condensation)
  • Bandwidth: DC to 200MHz (-3dB)
  • Attenuation ratio: 10:1 ±2% (+5 to +40 °C), 10:1 ±3% (−40 to +5 °C, +40 to +85 °C)
  • Connector Type: BNC
  • Input Resistance: 10MΩ ±2% (typical)
  • Input Capacitance: 16pF (typical)
  • Matching input capacitance: 15 to 25 pF
  • Rise Time: 1.8 ns max. (typical)
  • Propagation delay: 11.2 ns (typical)
  • Maximum input voltage, Space Between the pincher tip and safety ground lead:
    • +/-1,000V (DC + ACpeak) CAT II
  • Probe length: 2.5m
  • Standard parts included: One each, B8099NJ Pincher tip(high-side), B8099NK Safety ground lead (low-side)
  • Safety Rating (Probe Alone): EN61010-031, Measurement category I, II 1000 V (DC + ACpeak).
