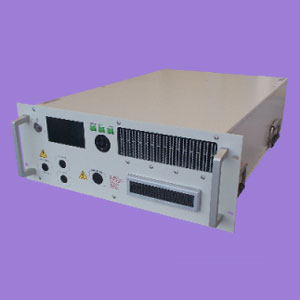

Prana DT 150 Amplificatore di Potenza 10 kHz - 1000 MHz / 150W
,

Prana DT 150 Amplificatore di Potenza, 10 kHz – 1000 MHz / 150W
Fuori Produzione

  • Class A solid state
  • Broadband (instantaneous single band): 10 kHz – 1000 MHz
  • Typical output power : 150 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB > 120 W and H < -20 dBc up to 400 MHz and
    • P1dB > 50 W and H < -20 dBc from 400 MHz to 1000 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19″ Rack
  • 3 years standard warranty
Prana DT 150 Amplificatore di Potenza 10 kHz – 1000 MHz / 150W
Prana DT 150 Amplificatore di Potenza DatasheetPrana DT 150 Amplificatore di Potenza English Datasheet
Categorie: , Tag: , ,
Richiedi Informazioni
  • Frequency bandwidth : 10 kHz – 1000 MHz
  • Typical output power : 150 W
  • Power at 3 dB compression : 140 W min. up to 400 MHz / 60 W min. from 400 MHz to 1000 MHz
  • Power at 1 dB compression : 120 W min. up to 400 MHz / 50 W min. from 400 MHz to 1000 MHz
  • Harmonics distortion : H2,H3 < -20 dBc for the output power at 1 dB compression limit
  • Class type : Class A
  • Gain : 52 dB
  • Linear power gain flatness : ± 5 dB max
  • Mismatch tolerance : infinite without damage
  • Input impedance : 50 ohms / VSWR: 2:1max
  • Output impedance : 50 ohms / VSWR: 2:1max
  • Input power : +10 dBm max.
  • RF input connector : Type N fem. (front or rear panel) – other connector type on request
  • RF output connector : Type N fem. (front or rear panel) – other connector type on request
  • Safety interlock : Connector type BNC
  • Digital control : Transistors, power supplies and internal temperature
  • Communication interface : IEEE 488, RS232
  • 4 lines digital display : Status, faults, (direct and reverse instantaneous power for DC version)
  • Ambient operating temperature : 0 °C / + 35 °C
  • Room temperature storage : -20 °C / +70 °C
  • Cooling : Forced air: 120 l/sec max. (self contained fans)
  • Power voltage : 200-250 VAC, 47-63 Hz, single phase
  • Rated current : 6.7 A at 230 VAC
  • Dimensions : 640 x 450 x 312 mm (7U) / 25.2 x 17.7 x 12.3 in (7U)
  • Weight : 50 kg / 110 lb
DT 150 DC version :
  • Integrated bidirectional power coupler : Coupling factor 49 dB typ.
  • Power coupling connector : Type N fem. (rear panel)
  • Estimated output power losses due to the coupler : 0.6 dB
