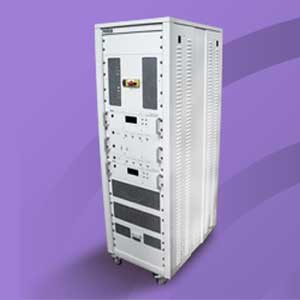

Prana DT 800 Amplificatore di Potenza 10 kHz – 1000 MHz / 800W
Fuori Produzione


  • Class A solid state
  • Broadband (dual instantaneous band):
    • 10 kHz – 200 MHz and
    • 200 MHz – 1000 MHz
  • Typical output power : 800 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB > 700 W and H < -20 dBc up to 200 MHz and
    • P1dB > 400 W and H < -20 dBc from 200 MHz to 1000 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19″ Cabinet on wheels
  • 3 years standard warranty

Prana DT 800 Amplificatori di Potenza 10 kHz - 1000 MHz / 800W
Prana DT 800 Amplificatori di Potenza DatasheetPrana DT 800 Amplificatori di Potenza English Datasheet
Richiedi Informazioni

[:it]

  • Frequency bandwidth : 10 kHz – 200 MHz / 200 MHz – 1000 MHz
  • Typical output power : 800 W
  • Power at 3 dB compression : 900 W min. up to 200 MHz / 450 W min. from 200 MHz to 1000 MHz
  • Power at 1 dB compression : 700 W min. up to 200 MHz / 400 W min. from 200 MHz to 1000 MHz
  • Harmonics distortion : H2,H3 < -20 dBc for the output power at 1 dB compression limit
  • Class type : Class A
  • Gain : 56 dB
  • Linear power gain flatness : ± 3.5 dB max
  • Mismatch tolerance : infinite without damage
  • Input impedance : 50 ohms / VSWR: 2:1max
  • Output impedance : 50 ohms / VSWR: 2:1max
  • Input power : +10 dBm max.
  • RF input connector : Type N fem. (front or rear panel) – other connector type on request
  • RF output connector : Type 7/16 fem. (front or rear panel) – other connector type on request
  • Integrated 2 bidirectional power couplers : Coupling factor 59 dB typ.
  • Power coupling connector : Type N fem. (front or rear panel)
  • Safety interlock : Connector type BNC
  • Digital control : Transistors, power supplies and internal temperature
  • Mismatch protection : Self limitation for reflected power > 500 W
  • Communication interface : IEEE 488
  • 4 lines digital display : Status, faults, (direct and reverse instantaneous power for DC version)
  • Ambient operating temperature : 0 °C / + 35 °C
  • Room temperature storage : -20 °C / +70 °C
  • Cooling : Forced air: 480 l/sec max. (self contained fans)
  • Mains voltage : 47-63 Hz, 3 phases (star or delta)
  • Rated current : 5 kVA
  • Dimensions : 600 x 840 x 1500 mm (30U) / 23.6 x 33.1 x 59.1 in (28U)
  • Weight : 360 kg / 794 lb

[:]
