Measured Data Analysis and Report Creation Tool
AQ7932 is application software that performs analysis of trace data measured by AQ7270, AQ7275 and AQ1200 OTDR on a PC, and creates reports. The report creation wizard function makes this task simple. AQ7270, AQ7275 and AQ1200 OTDR data can be easily loaded onto a PC using USB memory or storage function.

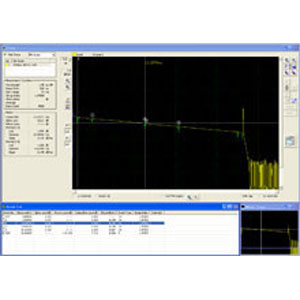

| Trace Analysis You can edit event search conditions, approximate curve line settings, and other analysis conditions, and repeat the analysis. Operation is also easy. Simply click the function icon. |
 |
| Variety of Analysis Functions Display up to eight traces on screen, and perform a variety of analyses including multi-trace analysis and differential trace analysis for comparing recent waveforms with old ones, and use the 2 way trace analysis function for analyzing average values of data measured from both directions in the optical fiber. |
|
| OTDR Project File Editor for Multi Fiber Measurement By registering a comment, number of cores, Tape ID, wavelength, etc., the OTDR Project File Editor creates “File name table” called “Project”. It can be used in combination with Multi fi ber measurement function available on AQ7270 and AQ7275. |
|
| Creating Reports You can compile trace and measured values from trace files and creates a report. Reports can also be created in Excel and CSV formats. Reports can be created easily by just following the step-by-step instructions in the report wizard. |
