Yokogawa AQ2200-421 Optical Switch Module


The AQ2200-421 OSW module features two optical switches with low insertion loss and superior switching reproducibility, in a one-slot size module, and allows selection of 1 x 2 or 2 x 2 port configuration according to the application.Moreover, the optical fiber type can also be selected between SMF(10/125 µm) and MMF(50/125 µm, 62.5/125 µm), allowing a wide range of measuring systems to be built corresponding to the systems or devices used in optical public networks or optical LANs.


Yokogawa AQ2200-421 Optical Switch Module
Yokogawa AQ2200-421 Optical Switch Module DatasheetYokogawa AQ2200-421 Optical Switch Module Datasheet English Version
Richiedi Informazioni
  • Compact: Optical switches of 1 x 2 or 2 x 2 port configuration in a one-slot size module
  • Compatible with SMF(10/125µm) or MMF(50/125µm, 62.5/125µm)
  • Low insertion loss: 1.0 dB (typ.)
  • High switching reproducibility: within ±0.01 dB

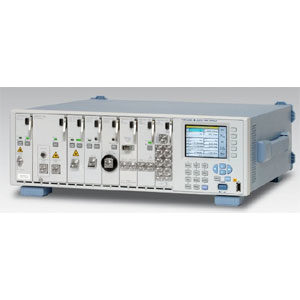

  • Can be combined with various AQ2200 series modules or other Yokogawa’s optical communication measuring instruments to build versatile measuring systems



J029 Tm Aq2200 421 02

Examples of Measurement Application

  • For measuring multiple objects, with switching of the object to be measured
  • For measuring device characteristics, etc. by switching multiple measuring instruments
  • For building a measurement system in combination with a bit error tester, etc.
J029 Tm Aq2200 421 03
