- Nominal Frequency range 0.7 – 7 GHz
- Useable Frequency range 0.4 – 10 GHz
- Connector female 50 W N
- Mounting tube d=22 mm, L=200 mm
- Isotropic gain typ. 6…15 dBi (0.7 – 7 GHz)
- Antenna Factor 20 … 34 dB/m
- Difference of the Polarisation < +/- 0.5 dB f < 4.8 GHz
- Planes < +/- 1.5 dB f > 4.8 GHz
- SWR typ. 2
- Inversion Symmetry typ. < 0.5 dB
- Port Isolation < - 26 dB
- Cross Polar Rejection < -25 dB typ.
- Max. Input Power 200 W
- Dimensions 320 x 320 x 615
- Weight 6 kg
Antenne Horn EMC - Compatibilità elettromagnetica
Richiedi Informazioni

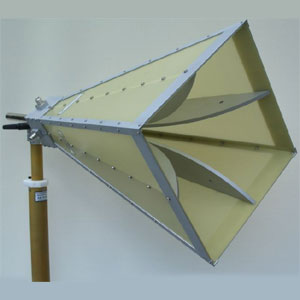

Schwarzbeck BBHX 9120 E Dual Polarized Broadband Horn Antenna
The Schwarzbeck BBHX 9120 E Dual Polarized Broadband Horn Antenna Dual is a polarised double ridge broadband horn antenna for receive and transmit applications.
