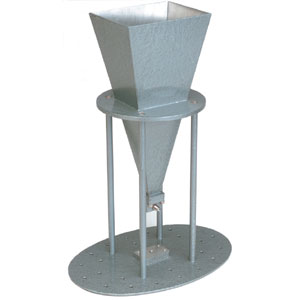

Com-Power AH-826 Standard Gain Horn Antenna

Com-Power AH-826 Standard Gain Horn Antenna

Com-Power AH-826 is a double Ridge Guide broadband horn antenna that offers excellent performance over the frequency range of 18 to 26.5 GHz. Most EMI test standards require the use of horn antenna for testing above 1 GHz. This Horn antenna is an excellent choice for both EMC radiated immunity and emissions testing.

Com-Power AH-826 Standard Gain Horn Antenna
Com-Power AH-826 Standard Gain Horn Antenna DatasheetCom-Power AH-826 Standard Gain Horn Antenna Datasheet English Version
Categoria: Tag: ,
Richiedi Informazioni
  • Frequency Range: 18 GHz – 26.5 GHz
  • Power: 5 Watts CW
  • VSWR: 2.0 : 1
  • Polarization: Linear
  • Impedance: 50 N)
  • Connector type: SMA (f)
  • Weight: 2 lb./ 0.9 kg
  • Size: 7.8 x 9.5 x 5.6 inches / 19.8 x 24.1 x 14.2
