| Frequency Range, nominal: | 800 MHz – 6.2 GHz | |
| Polarisation: | linear | |
| Pattern Type: | directional | |
| Material: | Aluminium | |
| Max Power: | see diagram | |
| Connector: | N (optional 7/16) | |
| Impedance: | 50 Ω nominal | |
| Length: | 680 mm | |
| Width: | 435 mm | |
| Height: | 440 mm | |
| Weight: | 7.6 kg | |
| Mounting: | Center Mount 3/8″ + M12 |
Antenne Horn EMC - Compatibilità elettromagnetica
Richiedi Informazioni

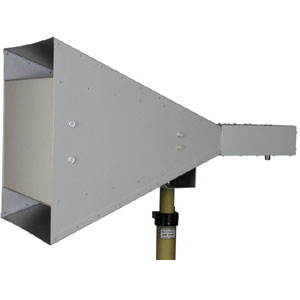

Schwarzbeck BBHA 9120 J Broadband High Gain Horn Antenna
Broadband High Gain Horn Antenna
The broadband horn antenna BBHA 9120 J is a linear polarized high gain antenna for the frequency range 800 MHz to 6.2 GHz. The gain increases from 11 dBi at 1GHz up to more than 20 dBi at higher frequencies.
