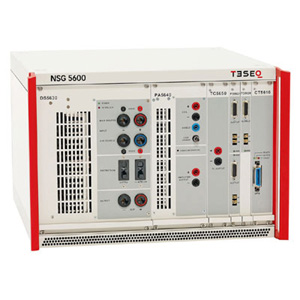

Teseq NSG 5600 Automotive Transient Immunity Tests


Progettato per essere usato da solo o in combinazione con un sistema NSG 5500, il NSG 5600 Automotive Transient Immunity Tests è progettato per simulare eventi che includono interruzioni di tensione, rumore sinusoidale e altri eventi sovrapposti alla batteria del veicolo: salti e cadute, impulsi ISO e SAE 2b e impulso 4.

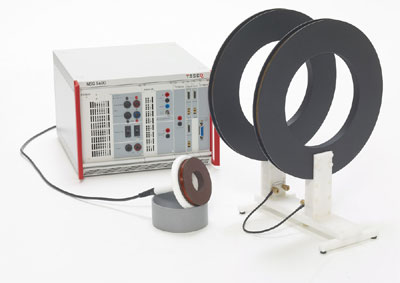

Il NSG 5600 Automotive Transient Immunity Tests è il leader nelle variazioni di tensione sincronizzate, come i test di power cycling (su un massimo di quattro FG) come richiesto da vari standard come CI 230 definiti negli standard Ford ES-XW7T-1A278-AB e AC. Inoltre, NSG 5600 può essere configurato per il test di immunità ai campi magnetici.


Teseq NSG 5600 Automotive Transient Immunity Tests
Teseq NSG 5600 Automotive Transient Immunity Tests DatasheetTeseq NSG 5600 Automotive Transient Immunity Tests Datasheet English Version

Categoria: Tag: ,
Richiedi Informazioni
  • AC operating voltage & frequency ranges: 100 V / 120 V / 220 V / 240
    V, 47 – 63 Hz
  • Dimensions: 19” desktop housing (rack mountable), height 330 mm (13”),
    depth 510 mm (20”)
  • Interface: IEEE 488 (GPIB)
  • Rack weight: NSG 5601: 18 kg (39.7 lbs) NSG 5602: 26 kg (57.4 lbs)
  • Safety interlocks: yes
