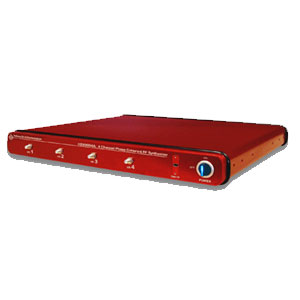

Holzworth HSX Serie Sintetizzatori Multi Canale

Holzworth Serie HSX Sintetizzatori Multi Canale

The HSX Series was developed to be the cleanest CW sources available. Phase noise performance, spurious rejection and harmonic /sub – harmonic rejection were the primary focus points during the development cycle. The result is an extremely high performing, broadband CW source.

Holzworth HSX Serie Sintetizzatori Multi Canale
Holzworth HSX Serie Sintetizzatori Multi Canale DatasheetHolzworth HSX Serie Sintetizzatori Multi Canale Datasheet Lingua Inglese
Categoria: Tag: ,
Richiedi Informazioni
Bandwidth
Output Power
Phase Noise (at max. frequency)
 Harmonics Spurious
10Hz OS 10kHz OS 10MHz OS
10MHz to 6GHz +20dBm to -110dBm -77dBc/Hz -128dBc/Hz -140dBc/Hz -40dBc -85dBc
10MHz to 12GHz +20dBm to -110dBm -71dBc/Hz -122dBc/Hz -134dBc/Hz TBD -85dBc
10MHz to 20GHz +20dBm to -110dBm -67dBc/Hz -118dBc/Hz -130dBc/Hz TBD -85dBc

Bandwidth
Output Power
Phase Noise (at max. frequency)
 Harmonics Spurious
10Hz OS 10kHz OS 10MHz OS
10MHz to 6GHz +20dBm to -110dBm -77dBc/Hz -128dBc/Hz -140dBc/Hz -40dBc -85dBc
10MHz to 12GHz +20dBm to -110dBm -71dBc/Hz -122dBc/Hz -134dBc/Hz TBD -85dBc
10MHz to 20GHz +20dBm to -110dBm -67dBc/Hz -118dBc/Hz -130dBc/Hz TBD -85dBc
