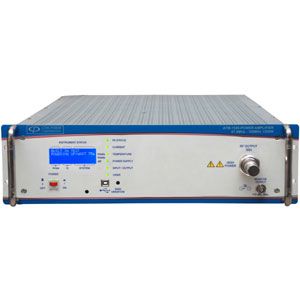

Com-Power AFM-1500 Amplificatore di Potenza, 87.5 kHz – 108 MHz


L’AFM-1500 fa parte della serie di amplificatori RF a banda larga di Com-Power, specificamente orientata per la trasmissione FM. Il modello AFM-1500 è un amplificatore MOSFET a banda larga, progettato per fornire un’eccellente efficienza operativa e affidabilità. Ha una potenza nominale di 1500 Watt. L’AFM-1500 è compatibile con trasmettitori radio FM (tipo HVB / HVM 164A, HVM 165A) o GCEL (tipo 131/136) 2×3 kW / 2×5 kW. La fase e il guadagno degli amplificatori di potenza sono abbinati per utilizzarli per trasmettitori FM ad alta potenza, cioè due uscite di amplificatori possono essere combinate per trasmettitori da 3 kW o quattro amplificatori per trasmettitori da 5 kW.


Com-Power AFM-1500 Amplificatore di Potenza
Richiedi Informazioni
  • Frequency Range: 87.5 kHz to 108 MHz
  • Rated Power Output: 1500 watts
  • Input for rated output: 2.5 Watts (max)
  • RF Checkpoint at output: 0.707 Vrms (+10 dBm max.)

Input:

  • Impedance 50 ohms (nominal)
  • VSWR: 1.2:1 (maximum)
  • Input Signal Modulation Compatibility: FM
  • Connector: Type BNC on Rear Panel

Output:

  • Impedance: 50 ohms (nominal)
  • VSWR: 1.2:1 (maximum)
  • Harmonic distortion: 65 dBc (min) at 1500 watts
  • Mismatch Tolerance: Automatic Safety Shut-off @ VSWR >1.8
  • Connector: Type 7/16” on front panel

Power:

  • Power Amplifier Supply: 27 VDC, 100 A (external)
  • Controller Supply: +/- 12 VDC, 1 A (external)
  • Power Consumption: 2200 Watts (max)
  • Efficiency: 68% (min)
  • Display and Interfaces: USB Remote Interface
  • Front Panel Display (Column 1): Individual Modules current measurement data
  • Front Panel Display (Column 2): Individual Modules temperature measurement data
  • Front Panel Display (Column 3): Load VSWR, RF Power Input/Output, Gain

Mechanical:

  • Cooling: Forced air (self-contained fans)
  • Size: 19” Rack 3U
  • Weight: 75 lbs (34 kg)
  • Operating Temperature Range: 0° C to 30° C
