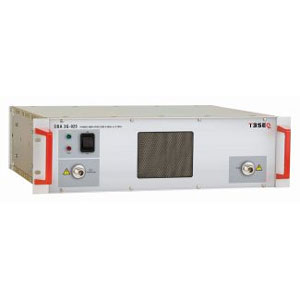

CBA 3G-012CBA 3G-012

800 MHz to 3.1 GHz 12 Watt Class A Broadband Amplifier

Designed specifically for Radiated EMC testing, this mismatch tolerant Class A amplifier delivers power continuously into the poor and variable match typically associated with testing above 1 GHz.

teseq
File-PDF-icon

800 MHz to 3.1 GHz 12 Watt Class A Broadband Amplifier

Designed specifically for Radiated EMC testing, this mismatch tolerant Class A amplifier delivers power continuously into the poor and variable match typically associated with testing above 1 GHz.

teseq
File-PDF-icon

Categorie: ,
Richiedi Informazioni

  • Frequency range (instantaneous)
 800 to 3100 MHz
  • Rated output power
 12 W minimum (800 MHz to 3 GHz)

15 W typical (800 MHz to 3 GHz)

10 W minimum (3.0 GHz to 3.1 GHz)

12 W typical (3.0 GHz to 3.1 GHz)
  • Output power at 1 dB gain compression
 10 W minimum (800 MHz to 3 GHz)

12 W typical (800 MHz to 3 GHz)

8 W minimum (3.0 GHz to 3.1 GHz)

10 W typical (3.0 GHz to 3.1 GHz)
  • Gain
 41 dB
  • Harmonics at P1 dB
 -20 dBc
  • Power Supply Voltage
 85-264 VAC
  • Power Supply Phases
 1

  • Frequency range (instantaneous)
 800 to 3100 MHz
  • Rated output power
 12 W minimum (800 MHz to 3 GHz) 15 W typical (800 MHz to 3 GHz) 10 W minimum (3.0 GHz to 3.1 GHz) 12 W typical (3.0 GHz to 3.1 GHz)
  • Output power at 1 dB gain compression
 10 W minimum (800 MHz to 3 GHz) 12 W typical (800 MHz to 3 GHz) 8 W minimum (3.0 GHz to 3.1 GHz) 10 W typical (3.0 GHz to 3.1 GHz)
  • Gain
 41 dB
  • Harmonics at P1 dB
 -20 dBc
  • Power Supply Voltage
 85-264 VAC
  • Power Supply Phases
 1
