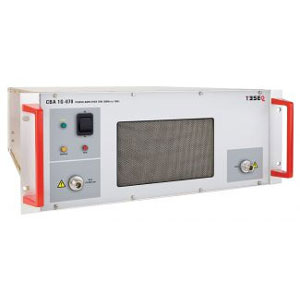

CBA 1G-070CBA 1G-070

10 MHz to 1 GHz 70 Watt Class A Broadband Amplifier

Designed specifically for radiated EMC testing, this mismatch tolerant Class A amplifier delivers power continuously into the very poor match typically associated with broadband EMC antennas when used at low frequency.

teseq
File-PDF-icon

10 MHz to 1 GHz 70 Watt Class A Broadband Amplifier

Designed specifically for radiated EMC testing, this mismatch tolerant Class A amplifier delivers power continuously into the very poor match typically associated with broadband EMC antennas when used at low frequency.

teseq
File-PDF-icon

Categoria:
Richiedi Informazioni

  • Class A linear and low distortion design
  • Ideal for use with GTEM cells
  • Mismatch tolerant and unconditionally stable
  • Wide instantaneous bandwidth
  • Three year parts and labour warranty
  • Frequency range (instantaneous): 10 to 1000 MHz
  • Rated output power: 70 W minimum (100 W typical 10 MHz to 500 MHz)
  • Output power at 1 dB gain compression: 60 W minimum (80 W typical 10 MHz to 500 MHz)
  • Gain: 49 dB
  • Harmonics at P1 dB: -20 dBc
  • Power Supply Voltage: 85-264 VAC
  • Power Supply Phases: 1

  • Class A linear and low distortion design
  • Ideal for use with GTEM cells
  • Mismatch tolerant and unconditionally stable
  • Wide instantaneous bandwidth
  • Three year parts and labour warranty
  • Frequency range (instantaneous): 10 to 1000 MHz
  • Rated output power: 70 W minimum (100 W typical 10 MHz to 500 MHz)
  • Output power at 1 dB gain compression: 60 W minimum (80 W typical 10 MHz to 500 MHz)
  • Gain: 49 dB
  • Harmonics at P1 dB: -20 dBc
  • Power Supply Voltage: 85-264 VAC
  • Power Supply Phases: 1
