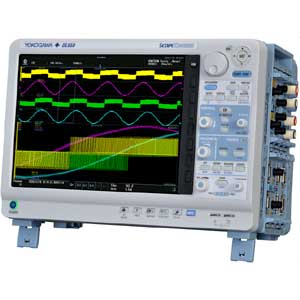

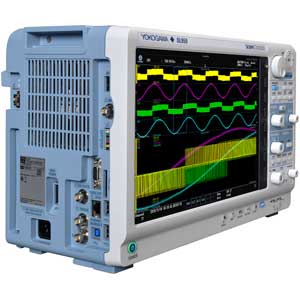

Yokogawa Scopecorder DL950

The DL950 is a unique combination of a mixed signal oscilloscope and portable data acquisition recorder that can be used to capture both high speed transient events and long run trends

Only a ScopeCorder has the right combination of channel count, input types, triggering, and recording to tackle the job of electromechanical systems development and troubleshooting. With its multiple measurement types, excellent performance, and high reliability, the DL950 ScopeCorder will quickly become the most valued instrument in your lab.

Yokogawa Scopecorder DL950
Yokogawa Scopecorder DL950 DatasheetYokogawa Scopecorder DL950 Datasheet Lingua Inglese
Richiedi Informazioni

Insight into the finest waveform details

  • 200 MS/s high-speed sample rate
  • 8 G points large memory
  • Long recording to internal flash memory at 20 MS/s
  • 10 Gbps Ethernet high-speed data transfer
  • Up to 16-bit analog resolution

Versatility to discover more

  • 8 input module slots
  • Up to 160 synchronized channels
  • A variety of isolated plug-in modules

Easy to use

  • Newly designed application menu
  • 12.1-inch large touch screen
  • up to 32 analog or 128 digital channels
  • measure up to 50 days or stream continuously to a pc
  • high-speed sample rate up to 200 MS/s
  • 12 bit, 14 bit or 16 bit waveform resolution
  • up to 8 Gpoint acquisition memory
  • large 12.1-inch touch screen

Oltre venti moduli tra cui scegliere per configurare la tua applicazione:

  • voltage and current with isolation up to 1000V
  • mechanical sensor outputs
  • temperature, vibration / acceleration, strain and frequency
  • logic signals & vehicle serial bus (CAN, CAN FD, LIN, SENT)
