- For use with coaxial lines
- BNC and N connectors
- Versions with double screened cable
- Meets the requirements of CISPR 22, CISPR 32, CISPR 16-1-2
- Design given in figure D.9 of CISPR 22 and G.9 of CISPR 32
- Can be used as CDN for IEC 61000-4-6 immunity tests
- Frequency range: 150 kHz to 230 MHz
- Power rating (EUT- and AE port)
-
- AC max. voltage (line to ground): 250 V
- DC max. voltage (line to ground): 400 V
- Current max : 1000 mA
- Test voltage: 750 V DC, 2 sec
-
- Common mode impedance (EUT port)
-
- 150 kHz to 30 MHz: 150 Ω ±20 Ω
- 30 MHz to 230 MHz: 150 Ω +60 Ω/-45 Ω
-
- Phase angle (EUT Port) 150 kHz to 30 MHz: 0° ±20°
Coupling Decoupling Networks, Impedance Stabilization Networks (ISN)
Richiedi Informazioni

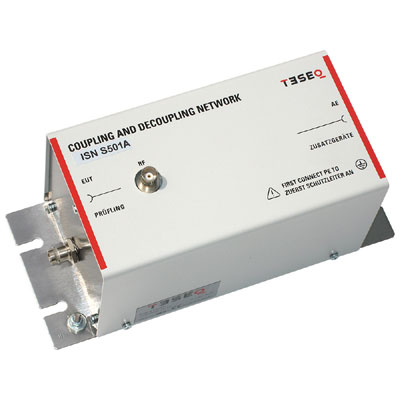

Teseq ISN S501A, S502A, S751 and S752 SNs for coax line
ISNs for coax line with BNC 50 Ω, N 50 Ω double screened, BNC 75 Ω and N 75 Ω double screened
I prodotti Teseq ISN S501A, ISN S502A, ISN S751 e ISN S752 sono progettati per misurazioni su linee di telecomunicazione coassiali. Il cavo interno utilizzato ha un’impedenza di 50 O per l’ISN S501A e l’ISN S502A, 75 O per l’ISN S751 e l’ISN S752.
Lo schermo del cavo è collegato sul lato AE a terra.
L’ISN S502A e l’ISN S752 sono forniti con cavi coassiali a doppio schermo e connettore N. Un esempio di design è dato in figura D.9 del CISPR 22 (EN 55022) e figura G.9 del CISPR 32 (EN 55032).
