- Frequency Range (nominal) 1-2 GHz
- Frequency Range (useable) 0.9-2.2 GHz
- Gain (Farfield) ˜ 19-22 dBi
- Antenna Factor 12…15 dB/m
- VSWR typ. < 1.5
- Front to Back Ratio typ. > 27 dB
- Half Power Beamwidth (E-Plane)
- 17° @ 1 GHz
- 13° @ 1.5 GHz
- Half Power Beamwidth (H-Plane)
- 11° @ 2 GHz
- 19° @ 1 GHz
- 14° @ 1.5 GHz
- 16° @ 2 GHz
- Connector 7/16
- Max. Input Power 2 kW (2 GHz)
- Max. Peak Input Power 10 kW
- Mounting Threads 3/8″ , M12
- Dimensions 0.72 x 0.96 x 1.84 m
- Weight 18 kg
- Material Aluminium
Antenne Horn EMC - Compatibilità elettromagnetica
Richiedi Informazioni

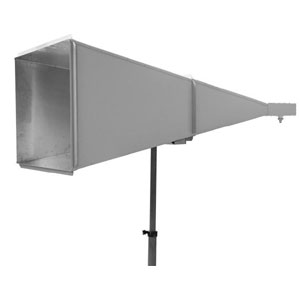

Schwarzbeck HA 9251-12 Pyramidal Standard Gain Horn Antenna
The Schwarzbeck HA 9251-12 Pyramidal Standard Gain Horn Antenna is a linear polarized standard gain horn antenna with coaxial 7/16 connector for highest power handling. The antenna was designed to generate highest fieldstrength at 1 m distance.
