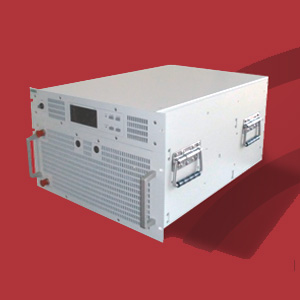

Prana SX 70/15 Amplificatore di Potenza, 0.8 GHz – 6 GHz, 70 W CW – 15W


  • Class A solid state
  • Broadband (instantaneous dual band): 0.8 GHz – 6 GHz
  • Typical output power :
    • 70 W CW (0.8 – 3.2 GHz) and
    • 15 W CW (3.2 – 6 GHz)
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB > 40 W and H < -20 dBc up to 3.2 GHz and
    • P1dB > 10 W and H < -20 dBc from 3.2 GHz to 6 GHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Upgradable to SX 70/30 possible
  • Reliable, efficient and robust
  • 19″ Rack
  • 3 years standard warranty

Prana SX 70/15 Amplificatore di Potenza
Prana SX 70/15 Amplificatore di Potenza DatasheetPrana SX 70/15 Amplificatore di Potenza Datasheet Inglese

Descrizione

  • Frequency bandwidth : 0.8 GHz – 6 GHz
  • Typical output power : 70 W / 15 W
  • Power at 3 dB compression : 50 W min. up to 3.2 GHz / 14 W min. up to 6 GHz *
  • Power at 1 dB compression : 40 W min. up to 3.2 GHz / 10 W min. up to 6 GHz *
  • Harmonics distortion : H2,H3 < -20 dBc for the output power at 1 dB compression limit
  • Class type : Class A
  • Gain : 50 dB
  • Linear power gain flatness : ± 5 dB max
  • Mismatch tolerance : infinite without damage
  • Input impedance : 50 ohms / VSWR: 2:1max
  • Output impedance : 50 ohms / VSWR: 2:1max
  • Input power : +10 dBm max.
  • RF input connector : Type N fem. (front or rear panel) – other connector type on request
  • RF output connector : Type N fem. (front or rear panel) – other connector type on request
  • Safety interlock : Connector type BNC
  • Digital control : Transistors, power supplies and internal temperature
  • Communication interface : IEEE 488
  • 4 lines digital display : Status, faults, (direct and reverse instantaneous power for DC version)
  • Ambient operating temperature : 0 °C / + 35 °C
  • Room temperature storage : -20 °C / +70 °C
  • Cooling : Forced air: 120 l/sec max. (self contained fans)
  • Power voltage : 200-250 VAC, 47-63 Hz, single phase
  • Rated current : 2.8 A at 230 VAC
  • Dimensions : 640 x 450 x 312 mm (7U) / 25.2 x 17.7 x 12.3 in (7U)
  • Weight : 37 kg / 81 lb
SX 70/15 DC version :
  • Integrated bidirectional power coupler : Coupling factor 49 dB typ.
  • Power coupling connector : Type N fem. (rear panel)
  • Estimated output power losses due to the coupler : 0.5 dB * => take account these power losses for the min output power

Versioni

  • SX 70/15 D amplifier with:
    • Display
    • Digital control
    • IEEE 488 GPIB Communication
  • SX 70/15 DC : SX 70/15 D with :
    • Integrated bidirectional coupler
    • display of instantaneous power

Manutenzione

  • Amplifier designed for minimal maintenance
    • Easy access to all parts
    • Modular design
    • Repairs with minimum adjustments
  • Rapid diagnostic
  • Minimal downtime
  • Contract for preventive and corrective maintenance available

Applicazioni

  • EMC tests
  • RF tests and instrumentation
  • Radiocommunication
  • Measurement and research laboratories
