Prana SW 18 Amplificatore di Potenza, 0.8 GHz – 4 GHz, 18W


  • Class A solid state
  • Broadband (instantaneous single band): 0.8 GHz – 4 GHz
  • Typical output power : 18 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB > 13 W and H < -20 dBc up to 2.5 GHz and
    • P1dB > 12 W and H < -20 dBc from 2.5 GHz to 4 GHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19″ Rack
  • 3 years standard warranty

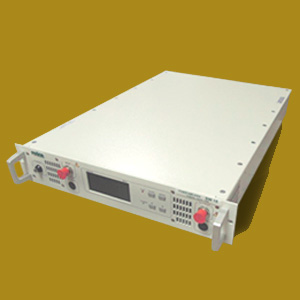

Prana SW 18 Amplificatore di Potenza
Prana SW 18 Amplificatore di Potenza DatasheetPrana SW 18 Amplificatore di Potenza Datasheet Inglese

Descrizione

  • Frequency bandwidth : 0.8 GHz – 4 GHz
  • Typical output power : 18 W
  • Power at 3 dB compression : 15 W min. up to 2.5 GHz / 13 W min. from 2.5 GHz to 4 GHz *
  • Power at 1 dB compression : 13 W min. up to 2.5 GHz / 12 W min. from 2.5 GHz to 4 GHz *
  • Harmonics distortion : H2,H3 < -20 dBc for the output power at 1 dB compression limit
  • Class type : Class A
  • Gain : 47 dB
  • Linear power gain flatness : ± 5 dB max
  • Mismatch tolerance : infinite without damage
  • Input impedance : 50 ohms / VSWR: 2:1max
  • Output impedance : 50 ohms / VSWR: 2:1max
  • Input power : +10 dBm max.
  • RF input connector : Type N fem. (front or rear panel) – other connector type on request
  • RF output connector : Type N fem. (front or rear panel) – other connector type on request
  • Ambient operating temperature : 0 °C / + 35 °C
  • Room temperature storage : -20 °C / +70 °C
  • Cooling : Forced air: 20 l/sec max. (self contained fans)
  • Power voltage : 90-250 VAC, 47-63 Hz, single phase
  • Rated current : 2.2 A at 110 VAC / 1.0 A at 230 VAC
  • Dimensions : 640 x 450 x 89 mm (2U) / 25.2 x 17.7 x 3.5 in (2U)
  • Weight : 12 kg / 26 lb
SW 18 D version :
  • Safety interlock : Connector type BNC
  • Digital control : Transistors, power supplies and internal temperature
  • Communication interface : IEEE 488
  • 4 lines digital display : Status, faults, (direct and reverse instantaneous power for DC version)
SW 18 SC and SW 18 DC versions :
  • Integrated bidirectional power coupler : Coupling factor 50 dB typ. (SC version) / 59 dB typ. (DC version)
  • Power coupling connector : Type N fem. (front or rear panel)
  • Estimated output power losses due to the coupler : 0.4 dB * => take account these power losses for the min output power

Versioni

  • SW 18 S : standard amplifier
  • SW 18 D amplifier with:
    • Display
    • Digital control
    • IEEE 488 GPIB Communication
  • SW 18 SC : SW 18 S with
    • Integrated bidirectional coupler
  • SW 18 DC : SW 18 D with :
    • Integrated bidirectional coupler
    • display of instantaneous power

Manutenzione

  • Amplifier designed for minimal maintenance
    • Easy access to all parts
    • Modular design
    • Repairs with minimum adjustments
  • Rapid diagnostic
  • Minimal downtime
  • Contract for preventive and corrective maintenance available

Applicazioni

  • EMC tests
  • RF tests and instrumentation
  • Radiocommunication
  • Measurement and research laboratories
