CBA 3G-450CBA 3G-450

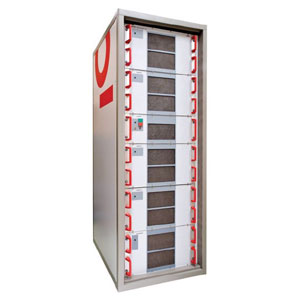

800 MHz to 3.1 GHz 450 Watt Class A Broadband Amplifier

Designed specifically for Radiated EMC testing, this mismatch tolerant Class A amplifier delivers power continuously into the poor and variable match typically associated with testing above 1 GHz.

teseq
File-PDF-icon

800 MHz to 3.1 GHz 450 Watt Class A Broadband Amplifier

Designed specifically for Radiated EMC testing, this mismatch tolerant Class A amplifier delivers power continuously into the poor and variable match typically associated with testing above 1 GHz.

teseq
File-PDF-icon

Categorie: ,
Richiedi Informazioni

Frequency range (instantaneous) 800 to 3100 MHz
Rated output power 450 W minimum (800 MHz to 3 GHz)
500 W typical (800 MHz to 3 GHz)
400 W minimum (3.0 to 3.1 GHz)
450 W typical (3.0 to 3.1 GHz)
Output power at 1 dB gain compression 400 W minimum (800 MHz to 3 GHz)
500 W typical (800 MHz to 3 GHz)
350 W minimum (3.0 to 3.1 GHz)
400 W typical (3.0 to 3.1 GHz)
Gain 57 dB
Harmonics at P1 dB -20 dBc
Power Supply Voltage 170-264 VAC
Power Supply Phases 3

Frequency range (instantaneous) 800 to 3100 MHz
Rated output power 450 W minimum (800 MHz to 3 GHz) 500 W typical (800 MHz to 3 GHz) 400 W minimum (3.0 to 3.1 GHz) 450 W typical (3.0 to 3.1 GHz)
Output power at 1 dB gain compression 400 W minimum (800 MHz to 3 GHz) 500 W typical (800 MHz to 3 GHz) 350 W minimum (3.0 to 3.1 GHz) 400 W typical (3.0 to 3.1 GHz)
Gain 57 dB
Harmonics at P1 dB -20 dBc
Power Supply Voltage 170-264 VAC
Power Supply Phases 3
