CBA 3G-100CBA 3G-100

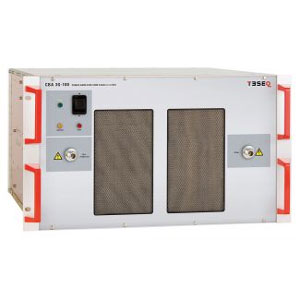

800 MHz to 3.1 GHz 100 Watt Class A Braodband Amplifier

Designed specifically for Radiated EMC testing, this mismatch tolerant Class A amplifier delivers power continuously into the poor and variable match typically associated with testing above 1 GHz.

teseq

File-PDF-icon

800 MHz to 3.1 GHz 100 Watt Class A Braodband Amplifier

Designed specifically for Radiated EMC testing, this mismatch tolerant Class A amplifier delivers power continuously into the poor and variable match typically associated with testing above 1 GHz.

teseq

File-PDF-icon

Categorie: ,
Richiedi Informazioni

Frequency range (instantaneous) 800 to 3100 MHz
Rated output power 100 W minimum (800 MHz to 3 GHz)
110 W typical (800 MHz to 3 GHz)
90 W minimum (3.0 GHz to 3.1 GHz)
100 W typical (3.0 GHz to 3.1 GHz)
Output power at 1 dB gain compression 90 W minimum (800 MHz to 3 GHz)
100 W typical (800 MHz to 3 GHz)
80 W minimum (3.0 GHz to 3.1 GHz)
90 W typical (3.0 GHz to 3.1 GHz)
Gain 51 dB
Harmonics at P1 dB -20 dBc
Power Supply Voltage 90-264 VAC
Power Supply Phases 1

Frequency range (instantaneous) 800 to 3100 MHz
Rated output power 100 W minimum (800 MHz to 3 GHz) 110 W typical (800 MHz to 3 GHz) 90 W minimum (3.0 GHz to 3.1 GHz) 100 W typical (3.0 GHz to 3.1 GHz)
Output power at 1 dB gain compression 90 W minimum (800 MHz to 3 GHz) 100 W typical (800 MHz to 3 GHz) 80 W minimum (3.0 GHz to 3.1 GHz) 90 W typical (3.0 GHz to 3.1 GHz)
Gain 51 dB
Harmonics at P1 dB -20 dBc
Power Supply Voltage 90-264 VAC
Power Supply Phases 1
