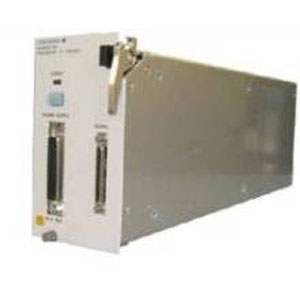

Yokogawa AQ2200-642 Transceiver I/F Module

Yokogawa AQ2200-642 Transceiver I/F Module

The AQ2200-642 reduces the complexity and cost of 10G optical transceiver testing by combining bus and power control features into the same mainframe that performs Signal Generation, BERT and Optical testing.

Yokogawa AQ2200-642 Transceiver I/F Module
Yokogawa AQ2200-642 Transceiver I/F Module PDFYokogawa AQ2200-642 Transceiver I/F Module PDF English Version
Categoria: Tag: ,
Richiedi Informazioni

Power supply, signal control, monitoring for 10G transceiver in one module

  • Support 10G optical transceivers
    • XFP, SFP+, XENPAK
  • Power supply and power current monitoring
    • Equipped with current limiter
  • I2C/MDIO interface
  • Signal Control
    • User can define the signal names
  • Voltage monitoring of status signals
    • Threshold adjustment for High/Low decision
  • Resistance monitoring for APS SET

Example of Parameter Setup Menu

AQ2200 642 2
