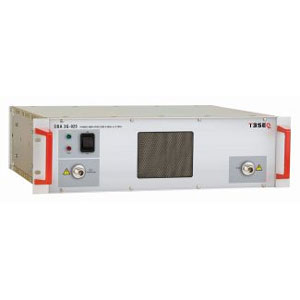

800 MHz to 3.1 GHz 25 Watt Class A Broadband Amplifier

Designed specifically for Radiated EMC testing, this mismatch tolerant Class A amplifier delivers power continuously into the poor and variable match typically associated with testing above 1 GHz.

teseq
File-PDF-icon

800 MHz to 3.1 GHz 25 Watt Class A Broadband Amplifier

Designed specifically for Radiated EMC testing, this mismatch tolerant Class A amplifier delivers power continuously into the poor and variable match typically associated with testing above 1 GHz.

teseq
File-PDF-icon

Categorie: ,
Richiedi Informazioni

Frequency range (instantaneous) 800 to 3100 MHz
Rated output power 25 W minimum (800 MHz to 3 GHz)
30 W typical (800 MHz to 3 GHz)
22 W minimum (3.0 GHz to 3.1 GHz)
25 W typical (3.0 GHz to 3.1 GHz)
Output power at 1 dB gain compression 23 W minimum (800 MHz to 3 GHz)
25 W typical (800 MHz to 3 GHz)
20 W minimum (3.0 GHz to 3.1 GHz)
22 W typical (3.0 GHz to 3.1 GHz)
Gain 46 dB
Harmonics at P1 dB -20 dBc
Power Supply Voltage 85-264 VAC
Power Supply Phases 1

Frequency range (instantaneous) 800 to 3100 MHz
Rated output power 25 W minimum (800 MHz to 3 GHz) 30 W typical (800 MHz to 3 GHz) 22 W minimum (3.0 GHz to 3.1 GHz) 25 W typical (3.0 GHz to 3.1 GHz)
Output power at 1 dB gain compression 23 W minimum (800 MHz to 3 GHz) 25 W typical (800 MHz to 3 GHz) 20 W minimum (3.0 GHz to 3.1 GHz) 22 W typical (3.0 GHz to 3.1 GHz)
Gain 46 dB
Harmonics at P1 dB -20 dBc
Power Supply Voltage 85-264 VAC
Power Supply Phases 1
