AP3380A |
AP3382A |
|
|
Tuning Range |
1529 to 1564 nm |
1575 to 1610 nm |
|
Min IL @ Peak1 |
< 4.0 dB |
|
|
Bandwidth @ 3 dB |
> 0.15 nm |
|
|
Bandwidth @ 20 dB |
< 0.68 nm |
|
|
Back Re?ection |
> 40 dB |
|
|
PDL |
< 0.3 dB |
|
|
Setting Error |
< +/- 50 pm |
|
|
Tuning Resolution |
10 pm |
|
|
Tuning Speed |
< 30 ms |
|
|
Optical Power |
< 500 mW |
|
|
Durability |
> 1 billion cycles |
|
|
Operating Temp |
-5 to 70 °C |
|
|
Storage Temp |
-40 to 85 °C |
|
|
Fiber Type |
9/125 µm single mode |
|
Apex Modular Manufacturing Test System
Richiedi Informazioni

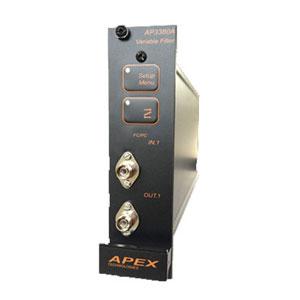

Apex AP3380 Optical Switch Module
APEX Technologies provides the AP3380 series optical tunable filter modules that offer the C+L band tunability and attractive features. By using the MEMS technology, it de-multiplexes the incoming multi-wavelength signal and selects the desired wavelength channel using a tilting MEMS mirror as the tuning mechanism. This Tunable Filter is an ideal component for use in all wavelength selection and monitoring applications, and is particularly well-suited for applications requiring frequent or continuous tuning.
