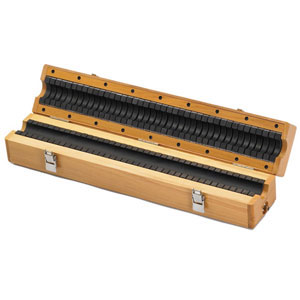

Com-Power CLA-150 Absorbing Clamp

Com-Power CLA-150 Absorbing Clamp, 32mm 30MHz / 1GHz

The absorbing clamp CLA-150 was designed for EMC emissions measurement of from electrical instruments via their connecting leads. The absorbing clamp is described in CISPR 16 part 1-3: Radio disturbance and immunity measuring apparatus – Ancillary equipment – Disturbance power. The CLA-150 measures radio noise power generated and fed through the power cables of these products above 30 MHz. It has a 32 mm cable aperture.

CLA-150 Absorbing Clamp 32mm 30MHz/1GHz
CLA-150 Absorbing Clamp ManualEnglish Version
Category: Tags: ,
Richiedi Informazioni
  • Frequency Range: 30 – 1000 MHz
  • Impedance: 50 Ohm
  • Connector Type: BNC (f)
  • Max cable diameter: 32 mm (1.26 inches)
  • Aperture size: 34.9 mm (1.37 inches)
  • Weight: 21 lbs (9.5 Kg)
  • Dimensions: 627 x 114 x 165 mm (24.7 x .4.5 x 6.5 inches)
