- Frequency Range: 18 GHz – 40 GHz
- Gain: 42 dB
- Gain flatness: ± 2 dB
- RF Input/output: 50Ω 2.9mm female
- VSWR ( Input/Output): 2.25:1 (max)
- Noise Figure: <5 dB @ 25 °C
- Pout @ 1dB comp: +10 dBm (min)
- DC input: 0 Vdc (max)
- Reverse isolation: 40 dB (typical)
- DC Power supply: +15Vdc, 500 mA
- Size: 7.6 x 5.95 x 2.17 inches (192 x 151 x 55 mm)
- Weight: 2.5 lbs (1.1 3Kg)
Preamplifiers
Richiedi Informazioni

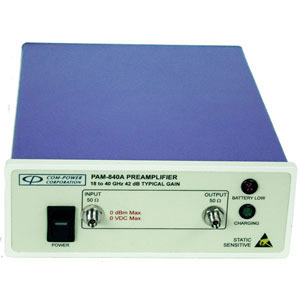

Com-Power PAM-840A Preamplifier, 18 – 40 GHz
The PAM-840A is a Wideband, high gain, bench top microwave preamplifier. The PAM-840A has a frequency range of 18 GHz to 40 GHz. This preamplifier is primarily intended for EMC applications; however, it may be used for other applications that require low noise and high signal amplification. The simple front panel consists of two 50 Ohm matched air core 2.9 mm connectors for input and output.
