Features
The AQ2211 and AQ2212 both have a 320×240-dot, wide-viewing-angle, high-resolution color TFT display for easy viewing. Even detailed graphs are easy to view on this display.

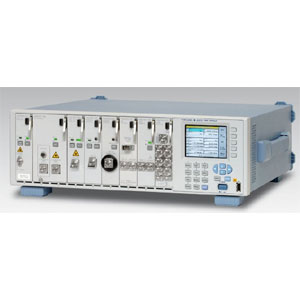

AQ2211 frame controller
AQ2211 frame controller
Display screen showing all installed modules
Multi User Function NEW!
Up to 5 users can access to a frame controller simultaneously.
Possible to control individual modules.
Macro Programming Function NEW!
Easy way to build auto-measurement systems, not requiring an external PC to run.
Easy programming with Macro editor, PC application software.
USB port for data storage
The USB port located on the front panel makes it easy to quickly save and load data. Measurements are saved in CSV format, so they can be easily imported into almost any PC application.
Measurement module “hot-swapping” capability
Measurement modules can be inserted or removed without turning off the power. This hot-swapping capability makes it easier to reconfigure your system. (warm-up time still required to ensure accurate measurements.)
Remote monitoring and measurement through a LAN
The AQ2211 and AQ2212 support USB and Ethernet as well as GP-IB, which is the standard interface for measuring instruments. Ethernet support makes remote monitoring and control even easier.
Quick Response in Remote Control NEW!
Fast remote command processing
Fast LAN: 100BASE-TX compatible
Remote Viewer Software NEW!
Displays the frame controller screen on PC.
Controls the frame as if operating on the real frame.
*The remote viewer software (free software) can be downloaded from our web side.
