Yokogawa AQ1200 MFT-OTDR Optical Time Domain Reflectometer

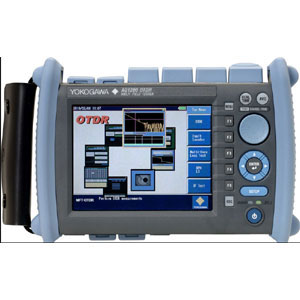

The AQ1200 Multi Field Tester OTDR is a compact and lightweight handheld OTDR optimized for the installation and maintenance of optical fiber cables. Designed with ease of use in mind to simplify field testing, improve work efficiency and ensure qualify results. Seven models are offered, each with unique wavelength(s) based on their specific application.


yokogawa
File-PDF-iconEnglish Version
Richiedi Informazioni

Product Lineup

AQ1200A 1310/1550 nm Standard model with the same wavelengths used for communication services.
Applicable for installation and maintenance
AQ1200B 1625 nm Models with a wavelength dedicated for maintenance of live fibers.
A built-in cut filter isolates the maintenance wavelength from the communication
wavelength in order to perform accurate measurements in live networks.
AQ1200C 1650 nm
AQ1200E 1310/1550, 1625 nm These tri-wavelength models has two ports. One port offers the communication
wavelengths while the other port is dedicated for the maintenance wavelength. Thus this model is ideal for use in both installation and maintenance applications.
AQ1205A 1310/1550 nm This High dynamic range model can accurately measure the trace even after the splitter in a PON system.Thus this standard wavelength model is highly suited for high port count PON networks with up to 64 ports splitters.
AQ1205E 1310/1550, 1625 nm These tri-wavelength models offers high dynamic range and has two ports. One port offers the communication wavelengths while the other port is dedicated for the maintenance wavelength. Thus this model is ideal for use in both installation and maintenance applications. The high dynamic range feature can accurately measure the trace even after the splitter in a PON system. Thus this is highly suited for high port count PON networks with up to 64 ports splitters.
AQ1205F 1310/1550, 1650 nm

PON Measurement Capability

In Passive Optical Network (PON) System used in FTTH (Fiber To The Home) it is important to quickly and correctly find a fault in the drop cable that is installed after the splitter. The AQ1200 MFTOTDR’s PON measurement mode (*) is a mode optimized for the measurement of PON with a high-port-count optical splitter and can ensure a quality waveform even if there is a big loss of optical splitter in the line. With a short dead zone, the AQ1200 can distinguish connectors placed as closely as 0.75 m in FTTx, home or office networks.

PON measurement

PON measurement
