- Two relays SPDT
- Low insertion loss
- High power handling
- Two models available
- Power supply: 12 V DC, 300 mA
- Connector type: Sub-D, 15 pins (for ITS 6006 user port)
- Response time: typical <20 ms
- Relay type: 2x SPDT, N sockets 50 Ω
- Power handling: Cold switching only
Wave Generators / RF Switches
Richiedi Informazioni

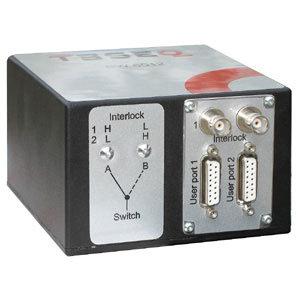

Teseq SW 6012 – RF Switch Solution for ITS 6006
RF Switch Solution for ITS 6006 Manual RF-Switch up to 12.4 GHz
The SW 6012 adds two SPDT switches to the built-in switching network of the ITS 6006. It is fully powered and controlled by the ITS 6006. Interlock connections are provided for switching the amplifier gain on/off. Additionally the SW 6012 is supplied with a second user port socket for various applications. The SW 6012 can be controlled by the NSG 4070B (NSG 4070 and NSG 4070A require SW 4070.).
