- Frequency range: 1 MHz to 3 GHz (nominal range), 200 kHz to 4 GHz (utilizable range)
- Gain: typ. 12.5 dB
- Gain flatness: ±0.3 dB (1 MHz – 1 GHz), +0.3 / -2.5 dB (200 kHz – 3 GHz)
- RF-Input: N – female, 50 Ω
- RF-Output: N – male, 50 Ω
- VSWR (input): ≤1.5
- Noise figure: typ. 4 dB
- 1 dB-compression (output): >+12.5 dBm (119.5 dBμV)
- Intercept point IP3 (output): typ. +33 dBm
- Max. input (linear): 0 dBm (107 dBμV)
- DC-power supply: 11 to 15 V
- DC-current: approx. 61 mA
- DC-connector: ODU-female, plus on inner conductors
- Operating temperature range: 0° to 40°C
- Storage temperature range: -20° to 60°C
- Size (W x D x H) (without connectors): 27 mm x 50 mm x 27 mm
- Size (W x D x H) (including connectors): 28 mm x 95 mm x 27 mm
- Weight: approx. 127 g
Preamplifiers
Richiedi Informazioni

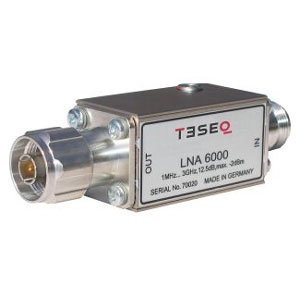

Teseq LNA 6000 Low Noise Amplifier, 1 MHz – 3 GHz
The LNA 6000 is a low noise amplifier with 12.5 dB of gain covering the nominal frequency range 1 MHz to 3 GHz and can be used in the range from 200 kHz to 4 GHz.
With its high gain and low noise figure, it will significantly increase the sensitivity of virtually all spectrum analyzers and other RF measuring instruments. All measuring instruments have a ‘noise figure’, which is a measure of how good the instrument is at measuring low level signals, the lower this figure, the better, although the lowest signal level will still be governed by the measurement bandwidth.
A typical spectrum analyzer may have a noise figure of 20 dB or more, whereas a typical receiver may have a noise figure of 10 dB. The preamplifier has a noise figure of typically 4 dB, significantly enhancing the low level performance of such instruments, enabling signals that were previously masked by noise to be seen.
