Teseq 250A-SAE GTEM Cell for Emissions and Immunity Testing

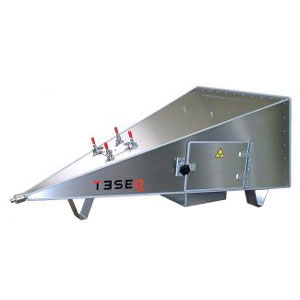

GTEM Cell for Emissions and Immunity Testing, version for SAE

In principle, the GTEM cell is a coaxial line expanding pyramidally and having an impedance of 50 Ω. At its end, the line is terminated by a combination of termination resistors and RF absorbers designed and constructed to match the above mentioned impedance.


teseq
File-PDF-icon
Richiedi Informazioni
  • Test cell with special opening to test integrated circuits on approx. 45 mm septum height
  • Meets IEC/EN 61000-4-20, SAE J1752/3, IEC 62132-2 and IEC 61967-2
  • For 100 Watts input power
  • Excellent VSWR up to 18 GHz
  • Septum height at marker position: 217 mm
  • Dimension (LxWxH): 1.25 x 0.65 x 0.45 m
  • Weight: 45 kg
