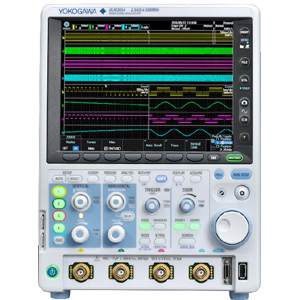

Yokogawa DLM3054 MSO Oscilloscope, 4 ch / 3+8 ch 500MHz


The DLM3000 builds on Yokogawa’s oscilloscope legacy with new features focusing on quality, flexibility, and usability to increase our users’ productivity and meet the advanced needs of today’s mechatronics designs. Integrating the latest in touchscreen operation, solid-state storage, and high speed signal processing, the DLM3000 enhances productivity by providing clean signals, extensive processing, and ease of operation. The DLM3000 touchscreen oscilloscope provides productivity at your fingertips.


DLM3022 Oscilloscopio DSO - 2 ch 200MHz Yokogawa
DLM3022 Oscilloscopio DSO - 2 ch 200MHz Yokogawa Datasheet IngleseYokogawa DLM3000 Oscilloscopi a Segnale Miste Brochure Brochure Inglese
Richiedi Informazioni
  • bandwidths of 500MHz
  • 4 / 3+8 channel mixed input
  • memory from up to 250 Mpoints
  • you can choose to activate channel four as an analog input, or use it to acquire 8 bits of logic instead

Quality

Yokogawa is committed to measurement quality, and the DLM3000 features lower residual noise, extensive voltage ranges and a variety of real-time lowpass filters to ensure the fidelity of your signals.
Flexibility

Channel count and memory depth options combined with optional Power Math and serial bus features including major automotive buses ensure an oscilloscope can be configured for a variety of needs.
Usability

The combination of a touchscreen with a traditional panel of oscilloscope controls allows users to seamlessly transition, while communication and storage options make it easy to access large data sets.
Input

Observe fine details captured by the completely redesigned analog front end, offering lower volts per division settings down to 500 μV/div and lower residual noise. Select one of 14 real-time low pass filters to reduce noise displayed on-screen and stored in memory. Four-channel models include a selectable 8 bits of digital input for capturing mixed signals. Push a single button to change channel four into an 8-bit digital analysis channel for a total 11-channel mixed-signal oscilloscope.
Configurations

Long memory is standard with 12.5 Mpoints (repeating acquisition) or 125 M (single interleave) to capture cause and effect relationships. Options up to 50 M / 500 Mpoints are available. Choose a 2-channel or 4-channel model to meet your technical and budgetary needs. Select from 200, 350, or 500 MHz bandwidth to capture the fast transients of your systems. Add Power Supply Analysis or Serial Bus options to get more done inside the instrument without the added step of an external PC.
Technology

Gigabit Ethernet and USB 3.0 data transfers are standard, making it easier to work with large data sets. Optional internal 60 GB SSD stores more waveforms than ever. The faster internal communication rates enable higher memory and faster update rates so you never miss a signal. Switch seamlessly between tapping, pinching and dragging the touchscreen or using the precise, tactile hardware controls so you can personalize the interaction that’s best for you.
