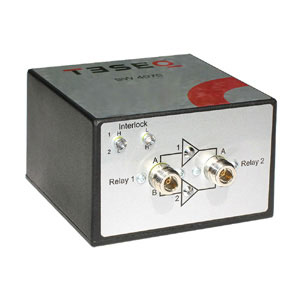

Teseq SW 4070, SW 4070-MAN – RF-Switch Solution

RF-Switch Solution for NSG 4070 Manual RF-Switch up to 2 GHz

The advanced use of the NSG 4070 may require the operation with two power amplifiers. The SW 4070 allows to switch the signal paths for having a remote controlled system and is fully powered and controlled by the NSG 4070. Interlock connections provide to switch off the amplifier gain. Additionally the SW 4070 is supplied with a second user port socket for connecting, e.g. the MD 4070 or using the EUT monitoring functions of the NSG 4070’s user port.
