Teseq 1750 GTEM cell for Emissions and Immunity Testing


GTEM cell for Emissions and Immunity Testing

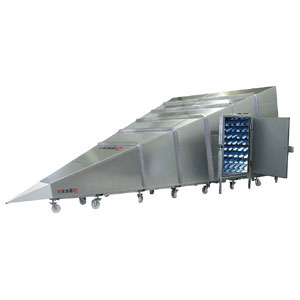

In principle, the GTEM cell is a coaxial line expanding pyramidally and having an impedance of 50 Ω. At its end, the line is terminated by a combination of termination resistors and RF absorbers designed and constructed to match the above mentioned impedance.


teseq
File-PDF-icon
Richiedi Informazioni
  • Emissions and immunity testing in a single, shielded environment
  • Meets basic standard: IEC/EN 61000-4-20
  • Meets standards for emissions testing: CISPR 14-1, IEC 61000-6-3 and IEC 61000-6-4 for EUTs without connected cables
  • Meets standards for immunity testing: EN 60118-13
  • Ideal for design qualification and pre-certification
  • Max. septum height: 1750 mm
  • Septum height at marker position: 1516 mm
  • Dimension (LxWxH): 7.95 x 4.10 x 2.90 m (H in relation to the selected support)
  • Weight: approx. 1800 kg
  • Height H1 of cell corpus: 2.75 m
