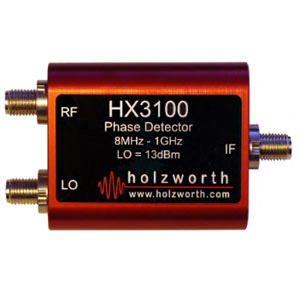

Holzworth HX3100 Phase Detector, 8MHz – 1.024GHz


The Holzworth HX3100 Phase Detector was designed with for making phase noise measurements and to be used in an analog phase locked loops where performance is a priority . The HX3100 uses a proprietary IF circuit that maintains optimal signal to noise ratio, improving the performance over standard phase detectors typically by 3 dB to 6dB.


holzworth
File-PDF-iconEnglish Version
Richiedi Informazioni
  • RF Bandwidth: 8MHz – 1.024GHz
  • IF Bandwidth: DC – 1MHz
  • LO Power: +10dBm to +16dBm
  • Phase Noise: -175 dBc/Hz at 100MHz (10kHz OS)
