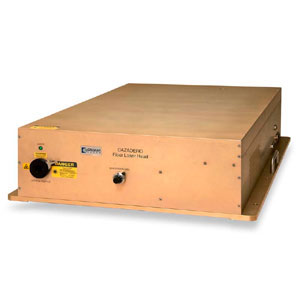

Calmar Laser Cazadero High Pulse Energy Fiber Based Femtosecond Laser


High Pulse Energy Fiber Based Femtosecond Laser (FLCPA)

The fiber laser based chirped pulse amplification system (FLCPA) generates high energy (up to 30 µJ) ultrafast laser pulses (<0.5 ps) at a repetition rate of 100s of KHz for either 1 or 1.5 µm wavelengths. The Cazadero ultrafast laser is also available in green (515 nm) and UV (343 nm) wavelengths.


calmar
Richiedi Informazioni
FLCPA-05U
File-PDF-iconEnglish Version
FLCPA-01C
File-PDF-iconEnglish Version
Minimum Pulse Width*
0.4
0.5
Central Wavelength (nm)
1030 (515, 343)**
1550
Average Power (W)
3.6
2
Repetition Rate (kHz)
120-27,000
100-25,000
Pulse Energy (µJ)
30@120kHz
3
Polarization Extinction Ratio
100:1
Output Beam (mm)
Free space, diameter 3 (typical), M2<1.2
Operating Temp (°C)
17 ~ 32
Operating Voltage (VAC)
85 ~ 264

* A sech2 pulse shape (convolution factor of 0.65) is used to determine the pulse width for the second harmonic autocorrelation trace
** The 515 nm and 343 nm are second harmonic and third harmonic of 1030 nm. They are available and can be in collinear output.
Optional pulse compression to < 100 fs.
Due to our continuous improvement program, specifications are subject to change without notice
