Holzworth HS9000 Series Multi-Channel Synthesizers

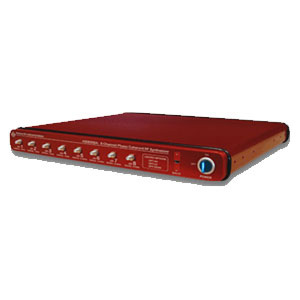

MULTI-CHANNEL PLATFORM Holzworth now offers the HS9000 Series Multi-Channel Synthesizers, allowing the user to specify anywhere from 1 to 8 independent channels (per 1U chassis) with any combination of frequencies spanning from 250kHz to 6.7GHz. This user defined platform provides the flexibility to tailor a multi-channel source to an application with short lead times and optimal price points.


holzworth
File-PDF-iconEnglish Version
Category:
Richiedi Informazioni

The HS9000 Series synthesizer platform is designed to be user/application defined. Follow 3 easy steps to determine the part number with the required options.

STEP 1: SELECT TOTAL NUMBER OF CHANNELS
Select the base part number, strictly calling out the total number of channels to be loaded into the multi-channel chassis.

….Number of Channels 1 2 3 4 5 6 7 8
….Part Number HS9001A HS9002A HS9003A HS9004A HS9005A HS9006A HS9007A HS9008A



STEP 2: SELECT CHANNEL FREQUENCY OPTIONS

Select any combination of channel frequency options. Note that the total number of channels specified here must equal the number of channels selected under STEP 1.

Frequency Range Number of Channels per Frequency Range
1x 2x 3x 4x 5x 6x 7x 8x
CMOS OUTPUT OPT- CMOS1 OPT- CMOS2 OPT- CMOS3 OPT- CMOS4 OPT- CMOS5 OPT- CMOS6 OPT- CMOS7 OPT- CMOS8
250kHz – 1GHz OPT-A1 OPT-A2 OPT-A3 OPT-A4 OPT-A5 OPT-A6 OPT-A7 OPT-A8
250kHz – 2GHz OPT-B1 OPT-B2 OPT-B3 OPT-B4 OPT-B5 OPT-B6 OPT-B7 OPT-B8
250kHz – 3GHz OPT-C1 OPT-C2 OPT-C3 OPT-C4 OPT-C5 OPT-C6 OPT-C7 OPT-C8
250kHz – 4GHz OPT-D1 OPT-D2 OPT-D3 OPT-D4 OPT-D5 OPT-D6 OPT-D7 OPT-D8
250kHz – 6.4GHz OPT-E1 OPT-E2 OPT-E3 OPT-E4 OPT-E5 OPT-E6 OPT-E7 OPT-E8
10MHz – 12.5GHz OPT-X1 OPT-X2 OPT-X3 OPT-X4 N/A N/A N/A N/A
10MHz – 20GHz OPT-F1 OPT-F2 OPT-F3 OPT-F4 N/A N/A N/A N/A

STEP 3: SELECT ADDITIONAL OPTIONS & ACCESSORIES
The options listed in this section are available for the multi-channel platform to comply with application specific requirements.

PART NUMBER ….Description
OPT-EXTMOD-n ….Channel dedicated, external modulation input. n=1, 2, 3… (up to 6 channels)
OPT-OCXO ….High Performance OCXO. 10dB Improved Phase Noise at close to the carrier
OPT-PWR18-n ….+20dBm (max) Calibrated Output Power Level. n=1, 2, 3… (up to 5 channels) ¹
HCM5 Ethernet Control Module
HCM10 RS232 Control Module
RACK-1U ….19″ Rack Mount Bracket Kit for 1U chassis, 90deg Rear Bracket
RACK2-1U ….19″ Rack Mount Bracket Kit for 1U chassis, Straight Rear Bracket

¹ OPT-PWR18-n is only available for channel options A-E (up to 6.4GHz). Channel Options X (12.5GHz) and F (20GHz) come standard with +18dBm calibrated output.
