- 61501 Alimentatori AC programmabile 0~300 V, 15~1 kHz / 500 VA
- 61502 Alimentatori AC programmabile 0~300 V, 15~1 kHz / 1 kVA
- 61503 Alimentatori AC programmabile 0~300 V, 15~1 kHz / 1,5 kVA
- 61504 Alimentatori AC programmabile 0~300 V, 15~1 kHz / 2 kVA
- 61505 Alimentatori AC programmabile 0~300 V, 15~1 kHz / 4 kVA
- 61511 Alimentatori AC programmabile 0~300 V, 15~1,5 kHz / 12 kVA, ø 1 o 3
- 61512 Alimentatori AC programmabile 0~300 V, 15~1,5 kHz / 18 kVA, ø 1 o 3
AC power supplies
Richiedi Informazioni

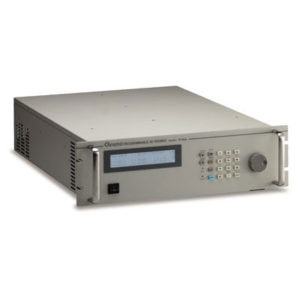

Chroma 61500 series Programmable AC Source
- Compact size and weight attributable to advance PWM technology
- AC+DC output mode for voltage DC offset simulation
- Programmable output impedance for IEC 61000-3-3
- IEC 61000-4-11, IEC 61000-4-14, IEC 61000-4-28 voltage dips and frequency variation simulation
- Harmonics, interharmonics waveform synthesizer for IEC 61000-4-13 testing
- Power line disturbance simulation capability
- Programmable voltage and current limit settings
- Comprehensive measurement capability, including current harmonics
- High output current crest factor, ideal for inrush current testing
- Turn on, turn off phase angle control
- TTL signal which indicates output transient
- Optional analog programmable interface
- 2 units combined in series for high Voltage source (Model 61501~61505)
- 3 units combined to 3-phase power output (Model 61501~61505)
- Optional GPIB and RS-232 interface (Model 61501~61505)
- Easy use graphic user interface: softpanel (Option)
- Softpanel for IEC regulation test
- Capable of delivering power output up to 90KVA by implementing Master-slave parallel operation
